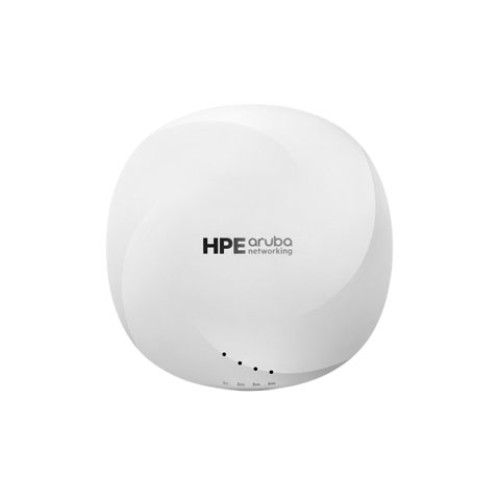

Flagship Wi-Fi 6E access point leveraging the 6 GHz band for up to 7.8 Gbps combined throughput. Three 4×4 MIMO radios across 2.4 GHz, 5 GHz and 6 GHz deliver multi-gigabit speeds, with ultra tri-band filtering to prevent interference. Dual configurable 5 Gbps Ethernet ports provide hitless failover of data and power. Integrated GPS and barometric sensors enable self-locating indoor maps, while Bluetooth 5 and 802.15.4/Zigbee radios support IoT and location services.
Key Features
- Tri-band 4×4 MIMO (2.4/5/6 GHz) up to 7.8 Gbps
- Ultra tri-band filtering for seamless 5/6 GHz coexistence
- Dual 5 Gbps Smart Rate ports with hitless Ethernet and power failover
- Built-in GPS receiver & barometric pressure sensor
- Integrated Bluetooth 5 & IEEE 802.15.4/Zigbee radios
Technical Specifications
- 6 GHz (160 MHz): 4.8 Gbps
- 5 GHz (80 MHz): 2.4 Gbps
- 2.4 GHz (20 MHz): 574 Mbps
- Total Peak Data Rate: 7.8 Gbps
- Device Class: Low Power Indoor (LPI)
- Power: PoE (802.3af/at/bt) or 12 V DC
- Operating Temperature: 0 °C to 50 °C
- Dimensions: 260 × 260 × 60 mm; Weight: 1.8 kg
