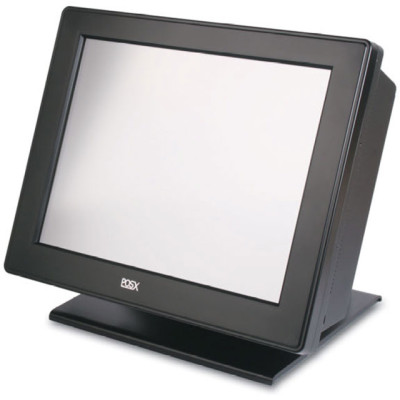

Custom America XPC517 POS Touch Terminal

PC SPECIFICATIONS:
CPU: Intel 2.8GHz Celeron ~ Core 2 Quad.
HARD DRIVE: 160 GB
Memory: 1 ~ 4GB DDR II RAM
AUDIO: AC97, 5.1 Sound
I/O PORTS: 6 x USB 2.0; 1 x RJ45; 1 x Parallel; 3 x Serial; 1 x PS/2 Mouse; 1 x PS/2 Keyboard; Audio
LAN: Onboard 10/100Mbps Ethernet
Video: Integrated Intel? GMA? 3100 Graphics Engine 256MB Shared Video


DISPLAY:
LCD PANEL: 17" TFT LCD Active Matrix display
RESOLUTION: 1280 x 1024 pixel, 16.7M colors
CONTRAST RATIO: 300-500:1
BRIGHTNESS: 250 cd/m2
PIXEL PITCH: 0.297 mm x 0.297 mm
ON SCREEN CONTROL: auto tune, brightness, contrast, clock, phase, H-position, V-position, recall
DISPLAY MODE: SVGA 800 x 600, XGA 1024 x 768, SXGA 1280 x 1024
SCAN RATE: 30 - 60 KHz (horizontal); 56 - 75 KHz (vertical)


TOUCH SPECIFICATIONS:
TECHNOLOGY: 5-Wire Resistive
INTERFACE: USB
TOUCH ACTIVE AREA: 13.3" x 10.6"

POWER:
Power Supply: 200w


ENVIRONMENTAL:
OPERATING TEMPERATURE 32? F to 114? F
OPERATING HUMIDITY 10%-80% non-condensing


PHYSICAL:
WEIGHT: 24 lbs
DIMENSIONS: 16.5" (W) x 10.0" (D) x 14.5" (H)br> COLOR: black
BACK CONTROLS: power on/off with LED, menu, auto tune, +/- adjustment
STAND STYLE: PED-3 cable management base
MOUNTING OPTIONS: desktop placement, bolt down & VESA mountable
MONITOR TILTING ANGLE: 90?
PC VIDEO INTERFACE: analog RGB (VGA)

SAFETY & REGULATORY APPROVALS
ROHS, FCC, CE, MIC, UL compliant, Plug & Play DDC 2B compliant

WARRANTY:
3 year
