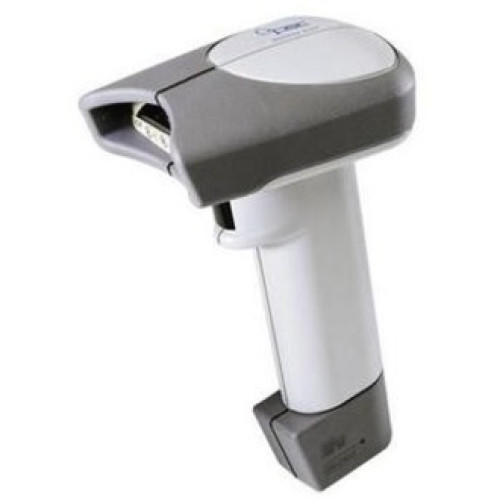

Datalogic Barcode Scanner
Part #: QS6-A100 | SKU: DAT15899

The QuickScan 6000 Plus Handheld Scanner offers great performance at a very affordable price. With a high first pass read rate and the best speed-to-read of any scanner in its class the QS6000 Plus speeds retail checkout. And its 13 inch (33 cm) depth of field with 100 percent UPC labels extends the user's working range. Support for all popular POS interfaces and keyboard wedges is standard. The QS6000 Plus reads all major bar code symbologies auto-discriminating between codes. Full support is also included for the UPC-EAN family add-ons and other types of code extensions.

Datalogic Barcode Scanner

Part Details: scanner only with USB interface. Order cables & power supply separately. See accessories.

InStock

Need a different version of the Datalogic QS6000 Plus Barcode Scanner? View all 13 configurations

Specs & Info

Additional Information

Manufacturer AIDC	DataLogic
Model Name	QS6000 Plus
Scanner Capability	1D
Scanner Type	Laser

DataLogic QS6000 Plus Specs (pdf)

Technical Information

Scan Rate: 42 scan/s
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- JAN-13
- JAN-8
- Code 128
- EAN-128
- Codabar
- Pharmacode 39
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- IATA
- Code 39
- MSI/PLESSEY
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- JAN-13
- JAN-8
- Code 128
- EAN-128
- Codabar
- Pharmacode 39
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- IATA
- Code 39
- MSI/PLESSEY
Maximum Scan Resolution: 5 mil
Depth of Field:
- 20"@20 mil
- 0 mil - 13"@13 mil
- 1" - 3"@5 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: QS6000 Plus
Product Name: QuickScan QS6000 Plus Barcode Reader
Product Line: QuickScan

Physical Characteristics

Height: 6.5"
Width: 2.8"
Depth: 4.2"
Color: Gray
Weight (Approximate): 6.50 oz

Interfaces/Ports

Host Interface: USB

Other

Additional Information:
- Scan system: Electromagnetic dithering mirror
- Pitch: ±65 Degree
- Skew: ±55 Degree
- Scan angle: 46 Degree
- Ideal for:
- Retail Applications
- Health Care
- Inventory
- Office Automation
- Light Industrial

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 14 V DC

Extended Details

Datalogic Barcode Scanner Part #: QS6-A100 | SKU: DAT15899
