279 279 279 Datamax-O'Neil

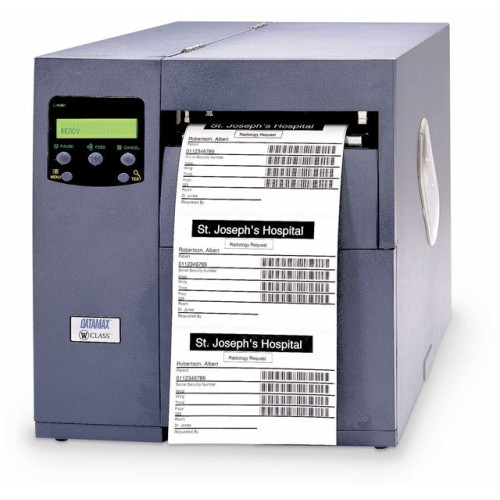

Datamax-O'Neil Barcode Label Printer Datamax-O'Neil Barcode Label Printer

Datamax-O'Neil Barcode Label Printer
Part #: G63-00-21000007 | SKU: DAT279

The DMX-W-6308 features a tough all-metal chassis designed to withstand adverse work environments making it ideal for heavy-duty industrial applications. It is equipped with a 32-bit 90-MHz true multi-tasking Motorola ColdFire processor and 16MB of standard memory which provides accelerated first-label output and variable-data printing. It is an ideal printer for compliance labeling applications including ODETTE EAN-128 and AIAG labels.

Datamax-O'Neil Barcode Label Printer

Part Details: Thermal transfer Printer (300 dpi, 6 in. Print width, 8 ips Print speed, Serial and Parallel Interfaces, Wide Web and 3 inch Media Hub)
InStock
Need a different version of the Datamax-O'Neil W-6308 Barcode Label Printer? View all 5 configurations

Additional Information

Interface Options Parallel, Serial (RS-232)
Manufacturer AIDC Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name W-6308
Print Resolution 305 dpi
Print Speed 8 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Datamax-O'Neil W-6308 Specs Datamax-O'Neil W-6308 Specs (pdf)

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x Centronics Parallel
    • 1 x RS-232 Serial
  • Maximum Print Width: 6.4"
  • Maximum Label Width: 6.7"
  • Maximum Label Length: 99.99"
  • Media Sensor:
    • Reflective
    • See Through
  • Input Voltage Range:
    • 90 to 132 V AC
    • 180 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 2MB

General Information

Physical Characteristics

  • Dimensions: 14.8" (375.92mm) x 13.8" (350.52mm) x 18.50" (469.9mm)
  • Weight: 55 lb (24.95 kg)

Agency Approvals

  • Agency Approvals:
    • UL
    • Canadian
    • European
    • FCC Class A
    • CE Mark

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"

Environmental Conditions

  • Temperature: 32°F (0°C) to 100°F (38°C) Operating
Extended Details
