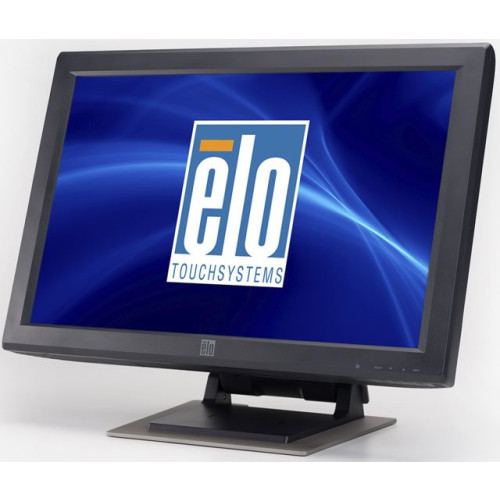

Elo 2400LM Touchscreen
Part #: E178661 | SKU: ELO188767

The ELO 2400LM 24" touchscreen is compliant with multiple safety and electrical certifications including EN 60950-1 and EN60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1-2 for EMC. In addition, the 2400LM is RoHS compliant, and includes an enclosure design that is resistant to dripping water with an IPX1 rating, protecting the unit from liquid drops and spills. As a result the 2400LM is an excellent fit for a wide variety of settings, including healthcare.

Elo 2400LM Touchscreen

Part Details: 2400LM INTELLITOUCH, Serial/USB, GRAY

InStock

Need a different version of the Elo 2400LM Touchscreen? View all 4 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Elo
Model Name	2400LM

Elo 2400LM Specs (pdf)

Technical Information

Horizontal Viewing Angle: 160°
Vertical Viewing Angle: 160°
Display Orientation: Landscape
Screen Mode: WUXGA
Features: Security Lock
Screen Size: 24"
Aspect Ratio: 16:10
Response Time: 5 ms
Screen Surface: Anti-glare

General Information

Product Type: LCD Touchscreen Monitor
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 2400LM
Product Name: 2400LM 24-inch Desktop Touchmonitor for Medical and Healthcare Settings

Physical Characteristics

Weight with Stand (Approximate): 27.78 lb
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color: Dark Gray
Weight (Approximate): 21.61 lb

Interfaces/Ports

USB: Yes
DVI: Yes
VGA: Yes
Serial Port: Yes

Video

Brightness: 250 Nit
Color Supported: 16.7 Million Colors
Maximum Resolution: 1920 x 1200
Contrast Ratio: 1,000:1

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: Surface Acoustic Wave

Audio

Speakers: Yes

Power Description

Operating Power Consumption: 50 W

Built-in Devices

Built-in Devices: Speaker

Extended Details

Elo 2400LM Touchscreen Part #: E178661 | SKU: ELO188767
