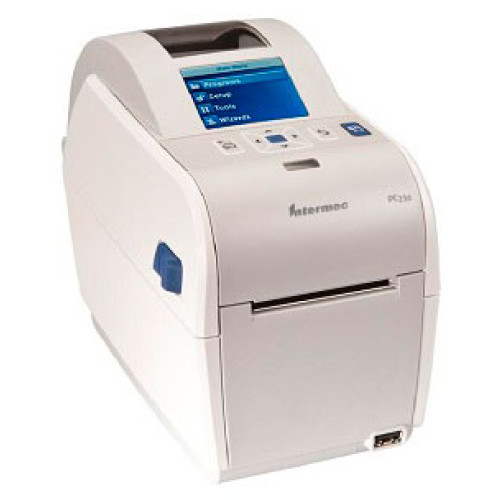

Honeywell EasyCoder PC23d Barcode Label Printer

Interfaces

Standard: USB Device Type B connector v.2.0 high speed, USB Host Type A connector v.2.0 high speed
Field Installable: Ethernet 10/100 Mbps module, Dual radio module (802.11 b/g/n and Bluetooth® V2.1), USB to Serial adapter (RS-232), USB to Parallel adapter
User Interfaces:
Choice of:
• 2.36" VGA LCD 480 x 234 resolution in 10 languages, 8 buttons and ready-to-work LED
• Graphical back-lit Icons (cover open, paper out), general error, maintenance, pause, thermal printhead too hot, data status, wireless status (if installed), Bluetooth® status (if installed), ready-to-work LED and one Print/Feed button
• User-configurable audio sounds with volume levels.
Supported Protocols:
Serial Flow Control: XON/XOFF, RTS/CTS
Wireless Prototocol: WEP static (64/128bits), WPA, WPA2, WEP dynamic, EAP-PEAP, EAP-TTLS, LEAP, EAP-FAST, EAP-TLS, CCX compliant level 3.
Graphics: Supports user-defined fonts and graphic formats including BMP, GIF, PCX, and PNG.

Memory

Standard: 128 MB Flash, 128 MB RAM (DDR2)
Optional: Up to 32 GB via user USB thumbdrive

Physical Characteristics

Height: 177 mm (6.9 in)
Width: 125 mm (4.9 in)
Depth: 215 mm (8.5 in)
Weight: 1.45 kg (3.20 lbs)

Power

Separate power supply
Input: 100–240 V AC/50–60 Hz, 1.5 A
Output: 24 V DC, 2.5 A Energy Star Compliant

Print Specifications

Label Roll Core:
Min. 25.4 mm (1 in)
Max. 38.1 mm (1.5 in)
Label Roll Max Diameter: 127 mm (5 in)
Max Label Width: 60 mm (2.36 in)
Max Length:
203 dpi – 1727 mm (68 in)
300 dpi – 900 mm (35 in)
Print Direction: Prints text, bar codes and graphics in all four directions
Print Speed: Selectable up to 8 ips (203.2 mm/sec) for 203 dpi; 6 ips (152.4 mm/sec) for 300dpi
Print Width:
203 dpi – max. 56 mm (2.2 in)
300 dpi – max. 54 mm (2.1 in)
Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)

Supported Bar Code Symbologies

1-Dimensional: All major 1-dimensional bar code symbologies are available
2-Dimensional: Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN-13, EAN.UCC 128, Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations)

Accessories

User Accessories: Dispenser with LTS, 300 dpi, Printer Case Lock

Software

Printer Command Languages:
• C# for Printers
• IPL
• Direct Protocol
• ZSim (ZPL)
• DSim (DPL)
• XML enabled for SAP® AII and Oracle® WMS

Applications / Drivers:
• InterDriver™ Windows printer driver
• Intermec Certified Device Types for SAP®
• Intermec label design and print package

Smart Printing Languages:
C# for Printers
• Smart Printing Developer Resource Kit
• Write apps with .NET-compatible development environments
Intermec Fingerprint
• Use Intermec Fingerprint ApplicationBuilder (IFAB)

Configuration & Device Management Support:
• PrintSet for printer configuration
• SmartSystems™
• Sophisticated web interface for configuration, upgrade and 1:1 management
• Wavelink Avalanche™
