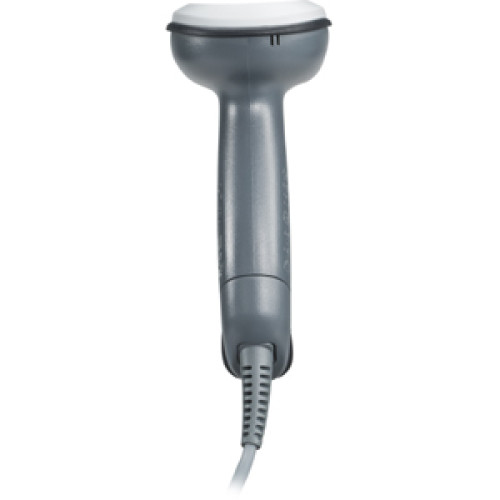

Intermec Barcode Scanner
Part #: SR30AATT00 | SKU: INT59518

The SR30's auto-adapting capabilities simplifies installation, enabling virtually instant connectivity to POS terminals, Intermec mobile or fixed mount computers, and personal computers. Users can easily connect the Intermec SR30 scanner to the host and start scanning immediately.

Intermec Barcode Scanner

Part Details: SR30, Area Imager EA15. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 236-164-002), PS/2 (Part# 236-204-002), or RS-232 Serial cables (Part# 236-161-002) and a Power supply (Part# 851-089-205).

InStock

Need a different version of the Intermec SR30 Barcode Scanner? View all 15 configurations

Specs & Info

Additional Information

Form Factor	Handheld
Manufacturer AIDC	Intermec
Model Name	SR30
Scanner Capability	1D

Intermec SR30 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Connectivity Technology: Cable
Image Sensor: Imager
Barcode Symbology Supported:
- Supported Barcode Symbologies
- UPC (E&A)
- EAN
- RSS
- Code 39
- Code 128
- UCC/EAN128
- ISBN
- ISBT
- Interleaved
- Matrix
- Industrial
- Standard 2 of 5
- Codabar
- Code 93/93i
- Code 11
- MSI
- Plessey
- Telepen
- Austraila Post
- Aztec
- BPO
- Canada Post
- Codablock
- Data Matrix
- Dutch Post
- EAN/UCC Composite
- Japan Post
- Maxicode
- PDF417/Micro PDF417
- Planet
- Postnet
- QR Code
- TLC 39
- Swedish Post
- Infomail
- Supported Barcode Symbologies
- UPC (E&A)
- EAN
- RSS
- Code 39
- Code 128
- UCC/EAN128
- ISBN
- ISBT
- Interleaved
- Matrix
- Industrial
- Standard 2 of 5
- Codabar
- Code 93/93i
- Code 11
- MSI
- Plessey
- Telepen
- Austraila Post
- Aztec
- BPO
- Canada Post
- Codablock
- Data Matrix
- Dutch Post
- EAN/UCC Composite
- Japan Post
- Maxicode
- PDF417/Micro PDF417
- Planet
- Postnet
- QR Code
- TLC 39
- Swedish Post
- Infomail
Depth of Field:
- 2.83" - 5.16"@5 mil - Code 39
- 1.50" - 8.86"@8 mil - Code 39
- 1.34" - 10.63"@10 mil - Code 39
- 17.32"@20 mil - Code 39
- 3.15" - 32.68"@40 mil - Code 39
- 1.97" - 5.12"@32 mil - UPC/EAN
- 2.48" - 6.81"@7.50 mil - Data Matrix
- 1.89" - 8.66"@10 mil - Data Matrix
- 11.42"@15 mil - Data Matrix
- 2.44" - 6.06"@6.60 mil - PDF417
- 1.77" - 9.06"@10 mil - PDF417
- 1.57" - 14.57"@15 mil - PDF417

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Intermec
Manufacturer: Intermec Technologies Corporation
Product Model: SR30
Product Name: SR30 Light Industrial Handheld Scanner

Physical Characteristics

Height: 6.6"
Width: 2.9"
Depth: 4.2"
Weight (Approximate): 6.70 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- SR30 Light Industrial Handheld Scanner
- Desktop Stand
- Wall Mount Holder
- Handsfree Stand
- Interface Cables
- EasySetTM Configuration Software Utility
- SR30 Light Industrial Handheld Scanner
- Desktop Stand
- Wall Mount Holder
- Handsfree Stand
- Interface Cables
- EasySetTM Configuration Software Utility

Extended Details

Intermec Barcode Scanner Part #: SR30AATT00 | SKU: INT59518
