| Color | Black |
|---|---|
| Connectivity | Cordless |
| Form Factor | Handheld |
| Included Cables | USB |
| Interface Options | USB |
| Manufacturer AIDC | Metrologic |
| Model Name | MS9535 Voyager BT |
| Scanner Capability | 1D |
| Scanner Type | Laser |

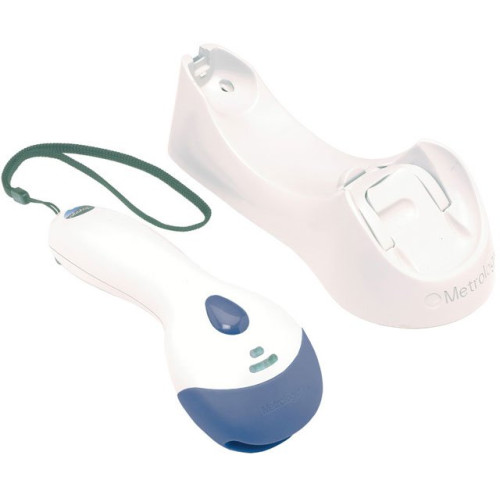

Metrologic MS9535 Voyager BT Specs
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: Single Line
- Connectivity Technology: Wireless
- Scanning Distance: 32.81 ft
- Light Source: Laser
- Barcode Symbology Supported:
- All Standard Symbologies
- All Standard Symbologies
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 0 mil - 2"@5.20 mil
- 0 mil - 5"@7.50 mil
- 0 mil - 7"@10.40 mil
- 0 mil - 8"@13 mil
- 1" - 10"@21 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: MS9535
- Product Name: VoyagerBT MS9535 Barcode Reader
- Product Line: VoyagerBT
Physical Characteristics
- Height: 7.8"
- Width: 1.8"
- Depth: 1.6"
- Color: Black
- Weight (Approximate): 7.02 oz
Interfaces/Ports
- Host Interface: Keyboard Wedge
Other
- Package Contents:
- VoyagerBT MS9535 Barcode Reader
- Stand
- Keyboard Wedge
- Cradle
- Power Supply
- VoyagerBT MS9535 Barcode Reader
- Stand
- Keyboard Wedge
- Cradle
- Power Supply
- Certifications & Standards:
- LED Class:
- Class 1; IEC60825-1:1993+A1:1997+A2:2001
- Class 1; EN60825-1:1994/A11:1996+A2:2001
- EMC:
- FCC
- ICES-003 & EN55022 Class B
- FCC
- ICES-003 & EN55022 Class A for FS USB
- IBM
- Additional Information: USB Keyboard Wedge
Network & Communication
- Bluetooth: Yes
Warranty
- Limited Warranty: 1 Year
Power Description
- Input Voltage: 5.2 V DC
