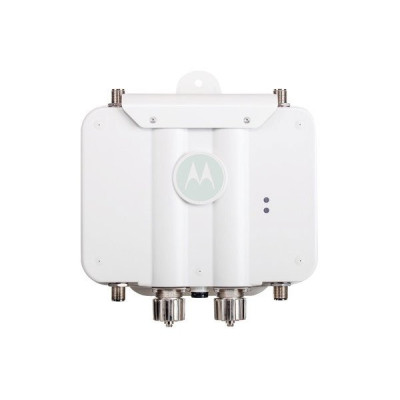

Motorola AP 6562 Wireless Access Points

The AP 6562 access point is designed to help lower the cost of deploying and operating a secure, reliable, and targeted outdoor wireless network, all powered by the WiNG 5 architecture. Choose from two models: an integrated antenna model for fast wall mounting or an external antenna model for pole mounting and remote wireless backhaul. The access point features dual 802.11n 2x2 radios with superior receive and transmit performance, a console port for configuration, and a GiGE LAN/WAN POE-enabled port for local or remote network connectivity. With it's WiNG 5 intelligence, this access point seamlessly extends your network to the outdoors with higher throughput along with direct forwarding, security, QoS services and site survivability.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Motorola AP 6562 Specs (pdf)

PHYSICAL CHARACTERISTICS

Outdoor access points

Yes

Weight

2.9 lbs

Dimensions (HxWxD)

9.1” x 9.8” x 2.6”

Available mount configurations

Adaptable mounting kit for wall and pole deployments (KT-147407-01). With optional extension arm accessory (KT-150173-01).

USER ENVIRONMENT

Shock and vibration

Operational shock: IEC60721-3-4, Class 4M3, MIL STD 810F Operational vibration: IEC60721-3-4, Class 4M3

Storage altitude

30, 000 ft

Operating humidity

5 to 95% RH, non-condensing

Operating temperature

-30 to +60°C

Electrostatic discharge

EN61000-4-2. Air +/-15kV, Contact +/-8kV

Operating altitude

8, 000 ft

Storage temperature

-40 to 85°C

POWER SPECIFICATIONS

Integrated power over ethernet support

802.3at draft power injector

Operating voltage

36-57 VDC

RADIO SPECIFICATIONS AND NETWORKING

Operating bands - FCC

2412 to 2472 MHz and 2484 MHz, 5180 to 5825 MHz

Maximum available transmit power

2.4GHz: 21dBm per chain, 5.0GHz: 20dBm per chain

Uplink

Auto-sensing 10/100/1000Base-T Ethernet

Wireless medium

Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing(OFDM), and Spatial Multiplexing (MIMO)

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps, 802.11n: MCS 0-15 up to 300Mbps

Transmit power adjustment

1dB increment

Operating channels

Radio 1: 2.4GHz: Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan only Radio 2: 2.4GHz: Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan only 5GHz:All channels from 5200 MHz to 5825 MHz Actual operating frequenciesdepend on national regulatory limits

VLANs/WLANs supported

VLANs and WLANs are controller-dependent

Network standards

802.11a, 802.11b, 802.11g, 802.11n

ANTENNA SPECIFICATIONS

Antenna configurations

1x1, 1x2, 2x2

Extended Details

Refine Your Options

Motorola Wireless Access Points
Part #: AP-6562-66030-US | SKU: MOT213564

802.11n Access Point - Dual Radio - Outdoor - Intenral Antenna
Zebra Wireless Access Points
Part #: AP-6562E-66030-WR | SKU: ZEB301336

AP 6562E, AP 6562: EXPRESS 802.11N AP, Internal Antenna WR
Motorola Wireless Access Points
Part #: AP-6562E-66030-US | SKU: MOT301335

AP 6562E, AP 6562: EXPRESS 802.11N AP, Internal Antenna US
Zebra Wireless Access Points
Part #: AP-6562-66040-WR | SKU: ZEB223491

AP-6562, Outdoor Dual Radio Mesh Wireless Access Point (802.11n, Independent AP, External Antenna, WW Only - No Europe)
Zebra Wireless Access Points
Part #: AP-6562-66030-WR | SKU: ZEB223490

AP-6562, Outdoor Dual Radio Mesh Wireless Access Point (802.11n, Independent AP, Internal Antenna, WW Only - No Europe)
Zebra Wireless Access Points
Part #: AP-6562-66040-US | SKU: ZEB213565

AP 6562, 802.11N Independent AP, Dual Radio, External Antenna, US Only
Zebra Wireless Access Points
Part #: AP-6562E-66040-WR | SKU: ZEB301338

AP 6562E, AP 6562: EXPRESS 802.11N AP, EXT ANT WR
Motorola Wireless Access Points
Part #: AP-6562E-60030-WR | SKU: MOT300929

AP 6562E, AP 6562: EXPRESS 802.11N AP, Internal Antenna WR
Motorola Wireless Access Points
Part #: AP-6562E-60040-US | SKU: MOT300930

AP 6562E, AP 6562: EXPRESS 802.11N AP, EXT ANT US
Motorola Wireless Access Points
Part #: AP-6562E-60040-WR | SKU: MOT300931

AP 6562E, AP 6562: EXPRESS 802.11N AP, EXT ANT WR
