206979 206979 206979 Motorola

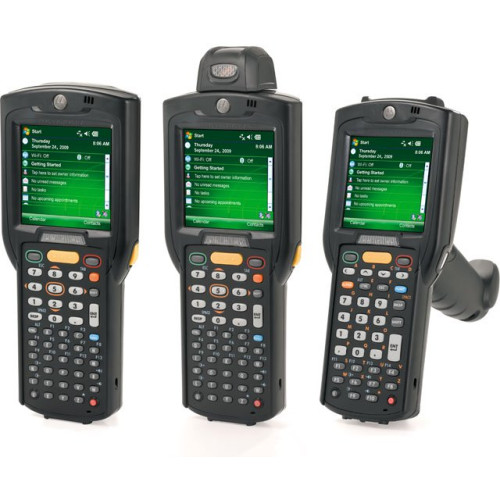

Motorola Mobile Computer Motorola Mobile Computer

Motorola Mobile Computer
Part #: MC3190-RL2H04E0A | SKU: MOT206979

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola Mobile Computer

Part Details: 802.11a/b/g, Bluetooth, Full Audio, Rotating Head, 1D Laser SE950, Color-touch display, 28 key, High Capacity Battery, CE 6.0 Pro, 256MB RAM/1GB ROM, English, World Wide - Download Local Language
InStock
Need a different version of the Motorola MC3190 Mobile Computer? View all 74 configurations

Additional Information

Manufacturer AIDC Motorola
Model Name MC3190
Motorola MC3190 Specs Motorola MC3190 Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190
  • Product Name: MC3190 Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.3"
  • Depth: 1.8"
  • Weight (Approximate): 14.96 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190 Handheld Terminal
    • High Capacity Battery
    • Stylus
    • Strap
    • MC3190 Handheld Terminal
    • High Capacity Battery
    • Stylus
    • Strap
  • Certifications & Standards:
    • CCXv4 Certified
    • IP54
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2No. 60950-1
    • EN60950-1/IEC 60950-1
    • WLAN and Bluetooth:
    • USA: FCC Part 15.247, 15.407
    • Canada: RSS-210
    • EMI/RFI Radio Versions:
    • USA: FCC Part 15
    • Canada: RSS210 Class B

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • Support for IPv6
    • FIPS140-2 Certified

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 28

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 6.0
