Additional Information
| Display Resolution | 320 x 320 |
|---|---|
| IP Rating | IP54 |
| Interface Options | Bluetooth, Wi-Fi. |
| Manufacturer AIDC | Motorola |
| Model Name | MC3190 |
| Operating System | Windows Mobile 6.5 |
| Operating Temperature | -4 F - 122 F (-20 C - 50 C) |
| Processor | Marvell PXA320 (624 MHz) |
| RAM Memory | 256 MB |
| Scanner Capability | 2D |
| Scanner Type | Imager |
| Style | Full-size |

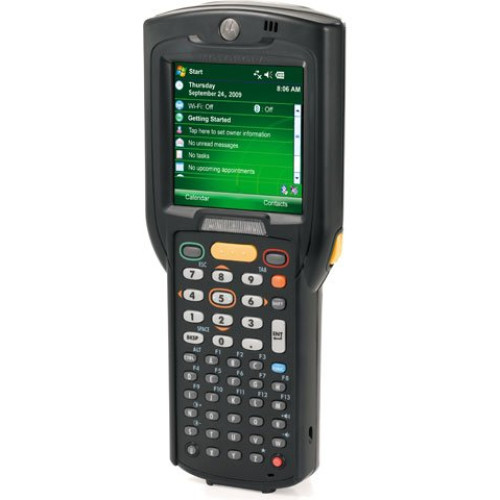

Motorola MC3190 Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification:
- 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
- 60" To Concrete73.4°F (23°C)
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC3100
- Product Name: MC3190 Handheld Terminal
Physical Characteristics
- Height: 7.5"
- Width: 3.3"
- Depth: 1.8"
- Weight (Approximate): 14.96 oz
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- WPA2
- 802.1x
- TTLS
- EAP-TLS
- LEAP
- PEAP
- EAP-FAST
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- Secure Digital (SD) Card
- MultiMediaCard (MMC)
Display & Graphics
- Display Screen Type: LCD
- Screen Size: 3"
- Display Color: Color
- Screen Resolution: 320 x 320
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 624 MHz
- Processor Type: XScale
Battery Information
- Battery Capacity: 4800 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Software
- Operating System: Windows Mobile 6.5 Classic
Touchscreen Information
- Touchscreen: Yes
Keyboard/Keypad
- Keyboard Type: Alpha
