| Manufacturer AIDC | PowerDsine |
|---|---|
| Model Name | High Power Splitter |
General Information
- Product Type: PoE Splitter
- Brand Name: PowerDsine
- Manufacturer: Microsemi Corporation
- Product Model: PD-AS-601/5

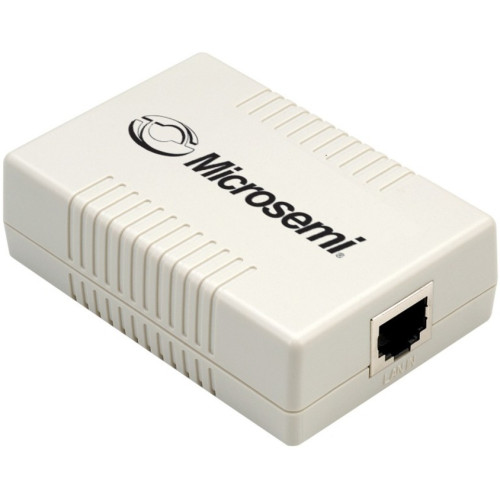

- Product Name: PD-AS-601/5 Power over Ethernet Active Splitter
Technical Information
- Input Voltage: 48 V DC
- Output Power: 10 W Maximum
- Output Voltage: 5 V DC
Physical Characteristics
- Height: 1"
- Width: 2.2"
- Depth: 3.2"
- Weight (Approximate): 3.53 oz
Interfaces/Ports
- Input Ports: 1 x RJ-45 10/100Base-TX
- Output Ports: 1 x RJ-45 10/100Base-TX
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- AUL 1950
- CSA C22.2 No. 950
- 73/23/LVD
- CE Mark
- EN60950
- TUV EN60950
- IEC 950
- CB Certified
- FCC Part 15, Class B
- CSA C22.2, Class B
- 89/336/EEC
- EMC Directive
- EN55022, Class B (Emissions)
- EN50082-1, (Immunity)
- CISPR 22, Class B
- AUL 1950
- CSA C22.2 No. 950
- 73/23/LVD
- CE Mark
- EN60950
- TUV EN60950
- IEC 950
- CB Certified
- FCC Part 15, Class B
- CSA C22.2, Class B
- 89/336/EEC
- EMC Directive
- EN55022, Class B (Emissions)
- EN50082-1, (Immunity)
- CISPR 22, Class B
- Country of Origin: China
Power Description
- Output Current: 2.20 A
- Input Voltage: 48 V DC
- Output Power: 10 W Maximum
- Output Voltage: 5 V DC
Warranty
- Limited Warranty: 1 Year
