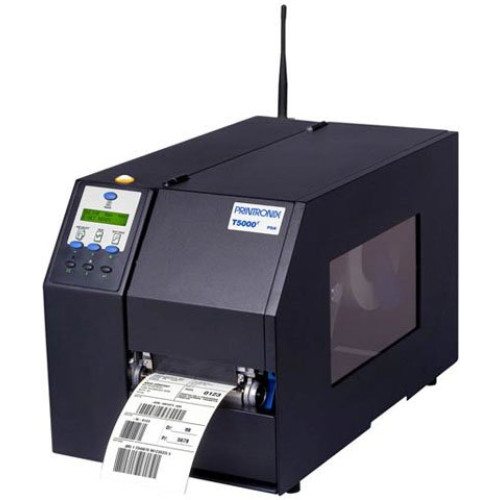

Printronix Barcode Label Printer
Part #: 199406-001 | SKU: PRI34842

T5000r thermal bar code printers, based on the world-class 5r Multi-Technology Platform, are web-enabled, industrial-grade thermal bar code label printers designed to operate in demanding manufacturing or distribution environments. Printronix bar code printers enable the rollout of bar code label printing throughout the supply chain with an open migration path to RFID.

Printronix Barcode Label Printer

Part Details: T5000r: T5204r, Industrial thermal barcode printer, 203 dpi, 4 inch Print width, Serial-Parallel-USB interface, 32 MB DRAM & 8 MB Flash, Emulation, US Kit, Rewind Kit

InStock

Need a different version of the Printronix T5204 Barcode Label Printer? View all 6 configurations

Specs & Info

Additional Information

Interface Options	Parallel, Serial (RS-232), USB
Manufacturer AIDC	Printronix
Max Roll Outer Diameter	8
Model Name	T5204
Print Resolution	203 dpi
Print Speed	10 ips
Printer Type	Industrial
Printing Technology	Thermal Transfer

Printronix T5204 Specs (pdf)

Technical Information

Maximum Mono Print Speed: 10 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 4.10"
Recommended Use: Label Print
Features: Rewind
Barcode Symbology Supported:
- Australia Post
- Aztec Code
- BC35
- BC412
- Codabar
- Code 11
- Code 35
- Code 39
- Code 93
- Code 128-A
- Code 128-B
- Code 128-C
- Data Matrix
- EAN-8
- EAN-13
- FIM
- 125 German
- Interleaved 2 of 5
- ITF-14
- Matrix
- Maxi Code
- MSI
- PDF-417
- Planet Code
- Plessey
- POSTNET
- PostBar
- ROYALBAR
- RSS-14
- Telepen
- UCC/EAN 128
- UPC-A
- UPC-E
- UPC-E0
- UPCSHIP
- UPS11

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Product Series: T5000r
Brand Name: Printronix
Manufacturer: Printronix, Inc
Product Model: T5204R
Product Name: ThermaLine T5204r Network Label Printer
Product Line: ThermaLine

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Media Types & Handling

Media Type:
- Roll Paper
- Fanfold
- Ticket
- Film
- Synthetic Media
- Direct Thermal Paper
- Thermal Transfer Label
Media Size:
- 4.50" x Roll Paper
- 1" x Roll Paper
Maximum Roll Diameter: 8"

Other

Platform Supported: PC
Additional Information:
- Sensing Methods:
- Reflective
- Transmissive

Memory

Standard Memory: 32 MB
Memory Technology: DRAM
Flash Memory: 8 MB

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Warranty

Limited Warranty: 1 Year

Extended Details

Printronix Barcode Label Printer Part #: 199406-001 | SKU: PRI34842
