98647 98647 98647 Printronix
Printronix Barcode Label Printer Printronix Barcode Label Printer Printronix Barcode Label Printer Printronix Barcode Label Printer Printronix Barcode Label Printer

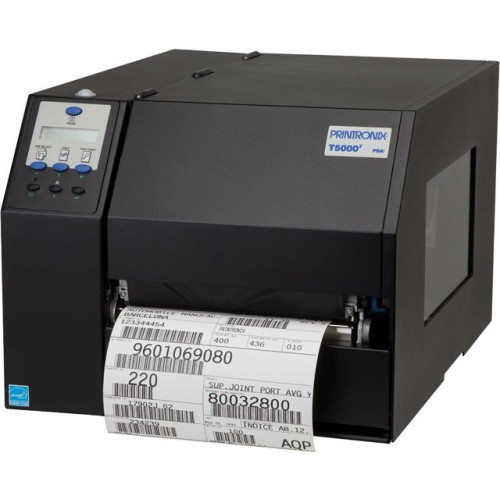

Printronix Barcode Label Printer
Part #: T53X4-0100-010 | SKU: PRI98647

The T5000r Series delivers dependable and reliable barcode printing for compliance labeling and accommodates higher density barcodes, increased graphics or smaller text with snap-in print heads. When used in conjunction with ODV technology (Online Data Validation), the T5000r Series provides verification of scannable barcodes at the point of label creation. Designed as RFID Smart Ready, the T5000r Series converts to an UHF RFID printer encoder as RFID requirements enter the supply chain. Combining barcode compliance and RFID technology the T5000r Series links barcode and EPC data together for storage, retrieval, electronic audits and data synchronization.

Printronix Barcode Label Printer

Part Details: Industrial Thermal transfer Barcode printer, 300 dpi, Maximum Print width 4.1", Interface Options: Serial, USB, Parallel, Ethernet, Wi-Fi, Coaxial/Twinax, GPIO, Additional Options: Partial Rewind, Cutter, Peeler.
InStock
Need a different version of the Printronix T5000r Series Barcode Label Printer? View all 45 configurations

Additional Information

Manufacturer AIDC Printronix
Max Roll Outer Diameter 8
Model Name T5000r Series
Print Resolution 300 dpi, 305 dpi
Print Speed 8 ips
Printer Type Industrial
Printronix T5000r Series Specs Printronix T5000r Series Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 7.99 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Tear-off
    • Peel Facility
  • Barcode Symbology Supported:
    • Aztec Code
    • BC35
    • BC412
    • Codabar
    • Code 11
    • Code 35
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • EAN-8
    • EAN-13
    • FIM
    • GS1-128
    • GS1 DataBar
    • Interleaved 2 of 5
    • ITF-14
    • Matrix
    • Maxi Code
    • MSI
    • PDF-417
    • Planet Code
    • Plessey
    • POSTNET
    • PostBar
    • ROYALBAR
    • Telepen
    • UPC-A
    • UPC-E
    • UPC-E0
    • UPCSHIP
    • UPS11

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: T5000r
  • Brand Name: Printronix
  • Manufacturer: Printronix, Inc
  • Product Model: T5304r
  • Product Name: ThermaLine T5304r Label Printer
  • Product Line: ThermaLine

Physical Characteristics

  • Height: 13"
  • Width: 11.7"
  • Depth: 20.5"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Label
    • Tag
    • Ticket
    • Film
    • Synthetic Media
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 2.99"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • PGL
    • ZGL
    • TGL
    • IGL
    • STGL
    • DGL
    • IEGL
    • MGL
    • XML

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC

Memory

  • Standard Memory: 64 MB
  • Memory Technology: DRAM
  • Flash Memory: 16 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet
Extended Details
