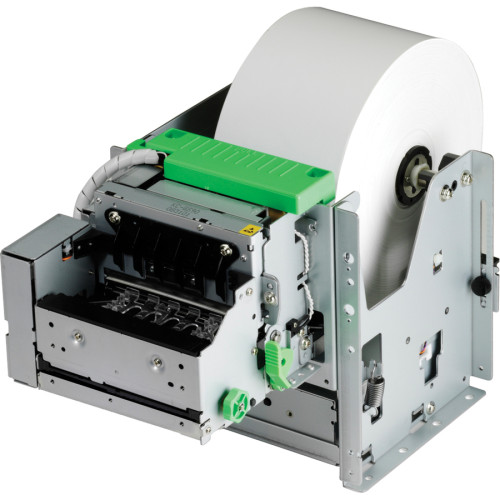

Star TUP500 Series Receipt Printer
Part #: 39470200 | SKU: STA143710

With a compact footprint and support for smaller paper widths, the TUP500 Series is a welcomed addition to Star's kiosk printer line to provide solutions to a great range of applications. The TTUP500 Series features an industry leading print speed of up to 220 mm/sec and a high reliability at an MCBF of 60 million lines. The innovative looping presenter prevents paper jams by printing the receipt in full before providing it to the user. The Presenter also uses Star" document capture technology to retract receipts left by the user, resulting in increased document security and a cleaner operation area. A brand new innovative bezel (snout) option can be directly attached to the presenter to capture the user"s attention with programmable 2-color (red & green) flashing LED lights. The TUP500 Series features adjustable paper widths of 45 mm to 82.5 mm documents. With the addition of the optional Large Paper Roll Accessory, it supports up to a 10" paper roll for many hours of unattended operation. The TUP500 Series kiosk printer is ideal for a wide range of applications including public information kiosks, gaming, lottery, web kiosks, and much more.

Star TUP500 Series Receipt Printer

Part Details: Kiosk Receipt Printer - Star TUP500 - Thermal - Cutter - 8.66 ips - No Presenter. Requires Power Supply Sold Separately (Part# 30781753). Compatible Interface Boards Sold Separately: Ethernet (Part# 39607800) - Parallel (Part# 39607211) - Serial (Part# 39607200) - Serial 9 Pin (Part# 39607300) - USB (Part# 39607510). NCNR. Also Known As: TUP542-25
InStock

Additional Information

Manufacturer AIDC Star
Model Name TUP500 Series

Technical Information

  • Maximum Mono Print Speed: 8.66 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Recommended Use: Receipt Print
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • ITF
    • Code 39
    • Code 128
    • Code 93
    • Codabar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TUP500
  • Brand Name: Star Micronics
  • Manufacturer: Star Micronics, Inc
  • Product Model: TUP542-24
  • Product Name: TUP500 TUP542-24 Receipt Printer

Physical Characteristics

  • Height: 7"
  • Width: 6.3"
  • Depth: 7.3"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Package Contents:
    • TUP542-24 Receipt Printer
    • PS60A External Power Supply
    • TUP542-24 Receipt Printer
    • PS60A External Power Supply

Media Types & Handling

  • Maximum Label Width: 3.25"
  • Media Type: Receipt
  • Media Thickness: 5.91 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Paper Low Sensor
    • Out Of Paper Sensor
  • Maximum Roll Diameter: 5.91"

Fonts & Emulation

  • Language Emulation:
    • ESC/POS
    • Star Line Mode
    • Star Page Mode

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Power Description

  • Input Voltage: 24 V DC

Cutter

  • Cutting Method: Automatic

Warranty

  • Limited Warranty: 3 Year
