20395 20395 20395 Symbol
Symbol Data Terminal Symbol Data Terminal Symbol Data Terminal

Symbol Data Terminal
Part #: VC5090-MA0TLQGH6WW | SKU: SYM20395

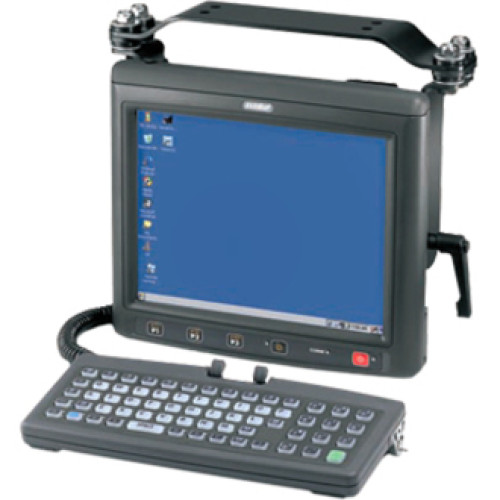

The VC5090 Vehicle/Fixed-Mount Mobile Computer from Symbol Technologies combines rugged construction and high performance wireless networking to enable real-time data access and collection in the harshest environments from the loading dock and freezer to the warehouse floor. Whether your workers are on a forklift, at a fixed station or moving through the warehouse aisles, the VC5090 provides the tools needed to increase productivity and reduce errors in shipping and receiving, as well as put-away and picking applications. The results are improved decision making, streamlining of warehouse operations and a positive impact on your bottom line.

Symbol Data Terminal

Part Details: VC5090, Vehicle/Fixed Mount Mobile Computer Half Screen
InStock
Need a different version of the Touch Dynamic Quest VIII Rugged Tablet? View all 121 configurations

Additional Information

Manufacturer AIDC Symbol
Model Name Quest VIII Rugged
Symbol Quest VIII Rugged Specs Symbol Quest VIII Rugged Specs (pdf)

Technical Information

  • Operating System: Windows CE Professional 5.0
  • Processor: Intel PXA270 XScale 624MHz
  • Vibration: MIL-STD-810F
  • Internal Heater: Yes
  • Keyboard: 65 Key QWERTY
  • Display: 10.5" Color 1/2 SVGA - Resistive Touch Screen

General Information

  • Manufacturer: Symbol
  • Product Name: VC5090 Vehicle/Fixed-Mount Mobile Computer

Physical Characteristics

  • Dimensions: 12.2" (310mm) x 11.28" (287mm) x 5.04" (128mm)
  • Weight: 16.31 lb (7 kg)

Interfaces/Ports

  • I/O Ports:
    • RS-232
    • USB

Network

  • Data Collection Type: Wireless
  • Network Connectivity:
    • WLAN 802.11a/b/g
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Antenna Connectors: Internal
  • Wireless Security:
    • WPA Enterprise
    • Wi-Fi Certified
    • TKIP
    • WEP 40 bit
    • WEP 128 bit
    • CCX
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Environmental Conditions

  • Environmental Sealing: IP66
  • Temperature:
    • -30°C (-22°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Operating Non-condensing
  • Electrostatic Discharge (ESD):
    • 20kV Air Discharge
    • 8kV Contact Discharge

Memory

  • RAM Memory: 64MB
  • Flash Memory: 192MB

Other

  • Additional Information: Expansion Slot: SD Memory Card

Agency Approvals

  • Agency Approvals: EMC: FCC Part 15 Class B ICES-003 Class B EN 55022 EN 301 489-1 EN 301 489-17 RF: FCC Part 15.247 FCC Part 15.205 FCC Part 15.209 FCC Part 15.203 FCC Part 15.407 FCC Part 15.207 EN 300 328 EN 301 893 RSS-210 ARIB STD-66 ARIB STD-33 T70 T71 Safety: UL 60950-1 CSA C22.2 No. 60950-1 EN 60950-1 IEC 60950-1

Scanner Options

  • Scanner Option: External

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
