model-3454 model-3454 model-3454 Unitech

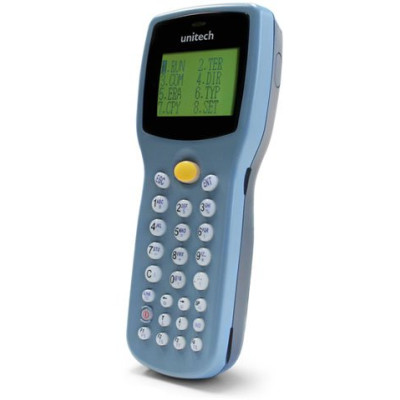

Unitech HT630 Handheld Computer

Unitech HT630 Handheld Computer

The ruggedness of the Unitech HT630 boosts high productivity and guarantees the investment for Enterprise Users. The HT630 provides out-of-the-box functionality via five ready-made common applications. The flexible modular design including barcode reading and keypad input makes the HT630 a perfect multi-functional mobile computer for most data collection applications.
Starting at: MSRP: $1,985.00 Price: $322.21
See all options
  • Compact and ergonomic design that is easy to handle trhough enture shifts by any user without sacrificing any features
  • Integrated laser or CCD barcode scanner supports all common linear (1D) barcodes for quick, accurate scanning
  • Sold as a complete kit that includes the device, needed accessories, and software to start collectiong data quickly
  • Designed to go the distance with an IP54-rating to handle exposure to dust, dirt and splashing water, as well as accidental drops from distances as high as 1.5 meters
  • JobGen Plus programming software provides an easy tool to quickly create robust data collection applications
  • 12 hour+ long-life battery ensures you can collect all your inventory with downtime to a minimum
The HT630 mobile computer is designed to meet the demands of various applications, ranging from transportation and warehousing to mobile sales and retail. Rugged and durable, the HT630 can withstand multiple 4-foot drops to concrete and weighs less than 8 ounces. The HT630 provides out-of-the-box functionality with five ready-made common applications. Its ergonomic design includes a 27-key keypad, backlit LCD screen and powerful bar code scanner, making data collection fast and easy.

Standard Features
- Compact, durable design
- IP54-rated / 4-foot drop threshold
- Memory options: 2.5MB or 4.5MB RAM
- 27-key keypad
- Text-based OS
- 16-bit processor
- 10-hour battery life
- Includes power supply, battery and cables

System

Operating System Proprietary DOS system
CPU 16-bit 80188 Processor
Memory 256K Flash ROM
512K / 2.5MB / 4.5MB RAM
(Stores over 17,000 24-character records per 500K / 0.5MB)
Keypad 26 alphanumeric keys plus one scan trigger
Display 128 x 64 pixels

Power Source

Main Battery One rechargeable Lithium-ion battery pack
Backup Battery 120mAH/3.6V for SRAM memory backup
Li-ion recharging 2.5 hours in docking station
Operating Time Over 12 hours

Laser Scanner

Light Source Visible Laser Diode 650nm
Scan rate 35 (x5) scans /sec (bi-directional)
Scan angle 53 degrees x2 degrees
Minimum Print Contrast Minimum 20% absolute dark/light

Symbologies

Types UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 full ASCI, Code 93,Code 32, Interleaved & Std. 2 of 5, EAN 128, Code 11, Delta, ISBN, MSI/Plessey,Code 128, Toshiba, EAN 128

Communication

Interface RS232 communication port
Handshaking Xon/Xoff or CTS/RTS
Protocol None, or Multi-point for multi-drop installation
File Transfer Built-in Kermit server

Software Programming Tools

C Language MSC, Borland C, Turbo C
JobGen Plus A Windows-based program generator
Form Caching A built-in program generator
DLL Library Available for 16/32-bit C++, VB, VFP and Delphi

Enclosure And Environmental

IP Rating IP54 rated
Drop Test 4-foot drop threshold
Dimensions 6.6"H x 2.64"W x 1.38"D
Weight 8.6 ounces
Operation Temperature 32F to 122F
Storage Temperature -4F to 158F
Humidity 5% ~ 95% RH non-condensing

Accessories

Items RS232 & USB communication cables, power adapter, cradle

Regulatory

Regulatory BSMI, CCC, CE, FCC, VCCI, RoHS compliant

Warranty

Main Unit 1 year
Battery, Cables, Adapters 90 days
Extended Details
Refine Your Options
  1. HT630-9000CADG - Unitech HT630 Handheld Computer

    Mobile Computer - Batch - 1D Laser Scanner - DOS - 4.5MB RAM - 27 key Alphanumeric Keypad - Includes Battery - Includes USB Cable - Includes USB Cable - Includes Power Adapter
    MSRP: $800.00 Price: $414.36
    In Stock - Ships Free
  2. HT630-9000BADG - Unitech HT630 Handheld Computer

    Mobile Computer - Batch - 1D Laser Scanner - DOS - 2.5MB RAM - 27 key Alphanumeric Keypad - Includes Battery - Includes USB Cable - Includes USB Cable - Includes Power Adapter
    MSRP: $745.00 Price: $322.21
    In Stock - Ships Free
  3. HT630-9000BA1G - Unitech HT630 Handheld Computer

    Mobile Computer - Batch - 1D Laser Scanner - DOS - 2.5MB RAM - 27 key Alphanumeric Keypad - Includes Battery - Includes RS-232/Serial Cable - Includes Power Adapter
    MSRP: $745.00 Price: $377.35
    In Stock - Ships Free
  4. HT630-9000CA1G - Unitech HT630 Handheld Computer

    Mobile Computer - Batch - 1D Laser Scanner - DOS - 4.5MB RAM - 27 key Alphanumeric Keypad - Includes Battery - Includes RS-232/Serial Cable - Includes Power Adapter
    MSRP: $800.00 Price: $422.89
    In Stock - Ships Free
  5. HT630-A000CADG - Unitech HT630 Handheld Computer

    Batch Portable Terminal (DOS, 4.5MB, USB, 4.5MB, Laser Scanner, USB Cable, Lithium Ion, AC Power and JOBGEN Software)
    MSRP: $800.00 Price: $422.89
    In Stock - Ships Free
  6. HT630LR-A000AADG - Unitech HT630 Handheld Computer

    Batch Portable Terminal (LR Laser, USB Cable, 512KB, Lithium Ion, 900MAH/3.7V, AC Power, IP54 and JOBGEN)
  7. HT630-INVENTORY-LITE - Unitech HT630 Handheld Computer

    HT630, Bundle includes HT630 unit (Part# HT630-AB0A1G), cradle, 1-year service contract and Inventory Lite software.
    Call For Price
  8. HT630-COMPARE-NO-HISTORY - Unitech HT630 Handheld Computer

    Bundle includes HT630 unit (Part# HT630-AB0A1G), cradle, 1-year service contract and Barcode Compare software.
    Call For Price
  9. HT630LR-AC01AG - Unitech HT630 Handheld Computer

    Batch Portable Terminal (LR Scanner, 4.5MBRAM, IP 54, 16Bit, Lithium Ion Battery, AC and RS-232 Cable)
  10. HT630HD-AA0A1G - Unitech HT630 Handheld Computer

    Batch Portable Terminal (HD/HI Visible, Laser, DOS, 512K, Lithium Ion Battery, 3.7V Power supply and RS-232 Cable)

Items 1 to 10 of 32 total
