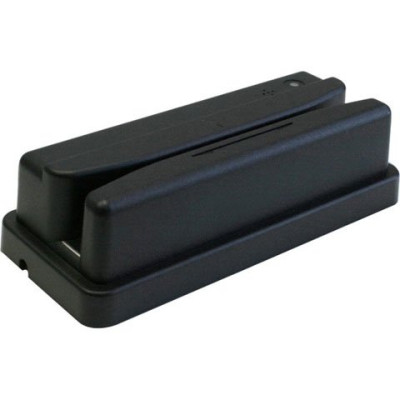

Unitech MS146 Barcode Card Reader

The Unitech MS146 bar code slot reader is a flexible, cost effective solution when reliability is essential. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any barcoded identification badge. The MS146's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. The convenient USB interface, water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment.

Starting at: MSRP: $127.00 Price: $82.55

See all options

Specs & Info
All Options

Unitech MS146 Specs (pdf)

OPTICAL

Light source	Visible light: 660 nm LED (MS146) Infrared: 930 nm LED (MS146I)
Sensor	Photo diode
Resolution	6 mils (0.15mm) minimum
Depth of field	2 mm
Scan rate	2.0" (50 mm) to 30" (750 mm)/second
Print contrast ratio	0.6

INTERFACE

Connector	PC XT / AT / PS/2 Macintosh RS232 TTL (undecoded)
Operation modes	Continuous
Signal	Open collector, black = high level (TTL)

MECHANICAL

Dimensions	3.75 Inches (95mm) 1.375 Inches (35mm) 1.875 Inches (30mm)
Weight	6.7 oz. (190g) with cable
Case material	ABS plastic

ELECTRICAL

Operating current	Undecoded: 35 mA Decoded: 70mA
Cable	6.0 ft. (1.83m)

DECODER

Symbologies	China Postal Code Codabar Code 11 Code 32 Code 39 (full ASCII) Code 39 (Standard) Code 93 Code 128 Delta Code EAN-8 with add-on code EAN-13 with add-on code EAN 128 Interleaved 2 of 5 ISBN / Bookland EAN ISBT 128 Italian Pharmacy Label Code IV Label Code V MSI / Plessey Standard 2 of 5 Toshiba Code UPC-A with add-on code UPC-E with add-on code
Data Editing	Almost unlimited
Configuration	Scanner Configuration Manager software Scanned-in bar codes

ENVIRONMENTAL

Operating temperature	32 to 122°F (0 to 50°C)
Storage temperature	-4 to 140°F (-20 to 60°C)
Humidity	0% to 95% RH non-condensing
Mechanical shock	5 ft. (1.5 m) drop to concrete
Environmental sealing	IP54
Warranty	2 years

Extended Details

Refine Your Options

Unitech Credit Card Reader
Part #: MS146-IUCB00-SG | SKU: UNI336110

Fixed Card Reader - Unitech MS146 - Infrared - USB - Reads 1D Barcodes

MSRP: $174.00 Price: $113.10

In Stock
Unitech Credit Card Reader
Part #: MS146-IUCB0M-SG | SKU: UNI336111

Fixed Card Reader - Unitech MS146 - Infrared - USB - Mounting Bracket - Reads 1D Barcodes

MSRP: $182.00 Price: $118.30

In Stock
Unitech Credit Card Reader
Part #: MS146-ITCB00-SG | SKU: UNI336109

Fixed Card Reader - Unitech MS146 - Infrared - 9-Pin Squeeze - Reads 1D Barcodes

MSRP: $133.00 Price: $86.45

In Stock
Unitech Credit Card Reader
Part #: MS146-IRCB00-SG | SKU: UNI336107

Fixed Card Reader - Unitech MS146 - Infrared - RS-232 Cable - Reads 1D Barcodes

MSRP: $178.00 Price: $115.70

In Stock
Unitech Barcode Card Reader
Part #: MS146-RUCB0M-SG | SKU: UNI336114

Fixed Card Reader - Unitech MS146 - LED - USB - Mounting Bracket - Reads 1D Barcodes

MSRP: $189.00 Price: $122.85
Unitech Credit Card Reader
Part #: MS146-RRCB00-SG | SKU: UNI336112

Fixed Card Reader - Unitech MS146 - LED - RS-232 Cable - Reads 1D Barcodes

MSRP: $158.00 Price: $102.70
Unitech Credit Card Reader
Part #: MS146-IRCB0M-SG | SKU: UNI336108

Fixed Card Reader - Unitech MS146 - Infrared - RS-232 Cable - Mounting Bracket - Reads 1D Barcodes

MSRP: $178.00 Price: $115.70
Unitech Credit Card Reader
Part #: MS146-RTCB00-SG | SKU: UNI638208

Fixed Card Reader - Unitech MS146 - Visual Light - 9-Pin Squeeze - Reads 1D Barcodes

MSRP: $127.00 Price: $82.55
Unitech Credit Card Reader
Part #: MS146-RUCB00-SG | SKU: UNI336113

Fixed Card Reader - Unitech MS146 - LED - USB - Reads 1D Barcodes
Unitech Barcode Card Reader
Part #: MS146-3PS2G | SKU: UNI23851

MS146, Slot Scanner, Visible Light, Keyboard wedge (PS/2)
