| INTERNAL PERFORMANCE |
| Operating System |
Windows CE 5.0 Professional |
| CPU |
520MHz Intel PXA270 Processor |
| Memory |
128 MB SDRAM / 64 MB Flash ROM |
|
|
| EXTERNAL CHARACTERISTICS |
| Dimension |
8.9"L x 3.9"W x 1.3"H |
| Weight |
1.06 lbs. |
| Display |
3.5" QVGA (landscape 240 x 320 pixels)
color touch-screen, TFT-LCD |
| Keypad |
17 hard keys:
12 numeric keys
Five function keys |
|
|
| MULTIMEDIA FEATURES |
| Camera |
2-megapixel CMOS |
| Audio Output |
0.8/2 Watt speaker
Microphone Input |
|
|
| COMMUNICATION |
| RS232 |
One RJ45 Support:
TX+, TX-, RX+, RX- |
| RS485 |
One RJ45 Support:
TX+, TX-, RX+, RX- |
| Ethernet |
One RJ45 with PoE (DC 5V / 2A) |
| USB |
V1.1 Host |
| Wireless |
802.11b/g via SDIO slot |
|
|
| BATTERY & POWER |
| Battery |
3.7V Li-Ion 1200mAh rechargeable battery pack |
| Backup Battery |
Embedded battery cell |
| Charging Time |
12-hours |
| Mini UPS Operation Time |
1-hour operation
3-days data backup |
| Power Input |
12V / 2A |
|
|
| CONNECTION & EXPANSION |
| SDHC Slot |
Memory
Wireless Communication |
| Output Relays |
Two:
2A / 30Vdc
0.5 / 250Vac |
| Photo-Coupler Inputs |
Two:
3.3V ~ 12V |
| Ethernet Connection |
|
| Power-over-Ethernet |
(Optional) |
|
|
| PROXIMITY READER |
| EM |
125 kHz |
| HID |
125 kHz |
| MiFare (Optional) |
13.56 MHz
ISO14443A
ISO14443A/B
ISO159693 |
|
|
| FINGERPRINT READER |
| Mark |
1-to-1 |
| Verification time, |
0.4 sec. per template |
| Capacity of Fingerprint |
100 templates |
|
|
| SOFTWARE PROGRAMMING TOOLS |
| TAS SDK, API for I/O
drivers |
|
| C#, VB.NET, C++ |
|
|
|
| FIELD ENVIRONMENT |
| Mounting |
In-Wall
On-Wall |
| Operating Temperature |
32?F to 122?F (0?C to 50?C) |
| Storage Temperature |
-4?F to 158?F (-20?C to 70?C) |
| Humidity |
5% to 95% RH non-condensing |
|
|
| IN THE BOX |
| MT380 |
|
| AC Adapter |
|
| USB Cable |
|
| RS232 Input Cable |
|
| RS232 Output Cable |
|
| Stylus |
|
| Terminal Block |
|
| Test Proximity Card |
|
| CD with Manuals / SDK |
|
|
|
| |

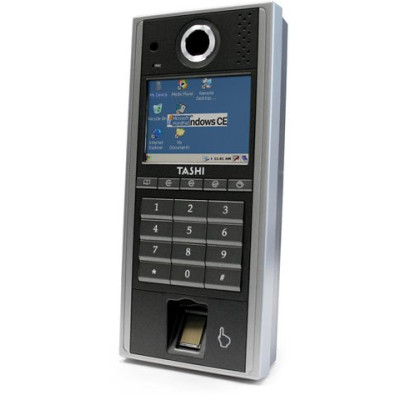

Unitech MT380 TASHI Specs
