8678 8678 8678 Zebra

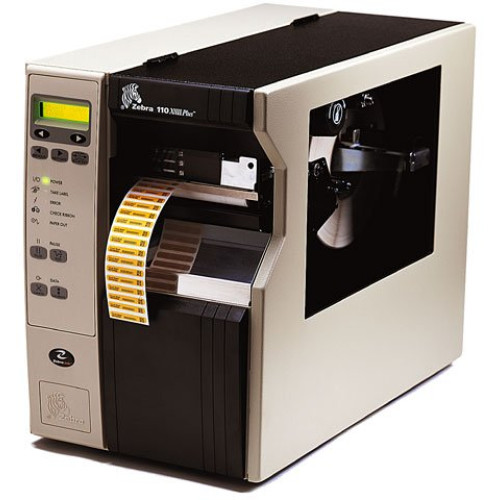

Zebra Barcode Label Printer Zebra Barcode Label Printer

Zebra Barcode Label Printer
Part #: 113-741-00000 | SKU: ZEB8678

The entry-level printer in the High Performance line, Zebras 110XiIIIPlus is a true 4 inch (102 mm) performance printer. This hardworking printer is the one to call on for heavy-duty, industrial operations. The 110XiIIIPlus printer is available with either 4.09 inch (104 mm) or 3.2 inch (81 mm) widths. Choose the resolution that best meets your needs, either 200, 300, or 600 dpi (8, 12, or 23.5 dots per mm). When choosing resolution, note that 600 dpi (23.5 dots per mm) is only available with 3.2 inch (81 mm) width and 4 inch (102 mm) per second speed. The 110XiIIIPlus printer is ideal for a variety of applications, including top-side and bottom-side circuit board labeling, product identification labels, serial plate labels, product labels, surgical tools and equipment, diagnostic kits, and vials and slides.

Zebra Barcode Label Printer

Part Details: 110XiIIIPlus Barcode printer (300 dpi, 4.5 inch Print width, 10 ips Print speed, Serial, PrintServer II and USB Interfaces, 16MB SDRAM and 2MB Flash)
InStock
Need a different version of the Zebra 110XiIIIPlus Barcode Label Printer? View all 37 configurations

Additional Information

Interface Options Ethernet, Serial (RS-232), USB
Manufacturer AIDC Zebra
Max Roll Outer Diameter 8
Model Name 110XiIIIPlus
Print Resolution 300 dpi, 305 dpi
Print Speed 8 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Zebra 110XiIIIPlus Specs Zebra 110XiIIIPlus Specs (pdf)

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x USB
    • 1 x RS-232C Serial
    • 1 x RJ-45 10 Base-T Ethernet
    • 1 x Serial
    • 1 x Ethernet
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.5"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: ZPL II
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Expandable Memory: 1GB
  • Input Voltage: 120 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions: 15.5" (393.7mm) x 10.37" (263.4mm) x 19.5" (495.3mm)
  • Weight: 50 lb (22.68 kg)

Included Features

  • Included Features:
    • ZebraNet PrintServer
    • Internal ZebraNet PrintServer II
    • Clear Media Side Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • Canadian ICES-003, Class B
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme)
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • 110XiIIIPlus Label Printer
    • User Guide
    • Accessories CD
    • 120 VAC Power Cord
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited
Extended Details
