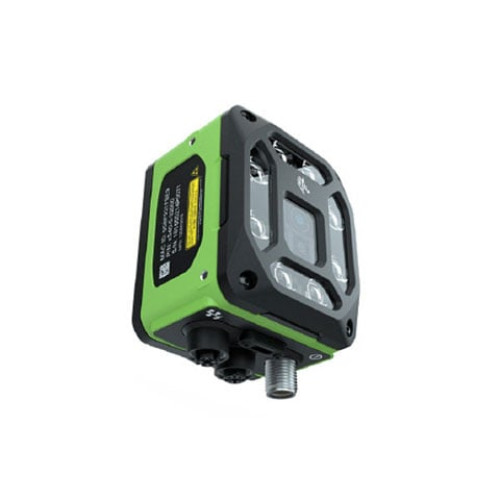

The Zebra NS42 Smart Vision Sensor is a cutting-edge solution designed to meet the rigorous demands of modern manufacturing and logistics. With its advanced anomaly detection tools and deep learning-based OCR, it ensures high-quality inspections and efficient product tracking. The user-friendly Zebra Aurora Focus software streamlines setup and operation, making it accessible for both seasoned professionals and newcomers. This robust device, built with an ultra-rugged aluminum housing and IP67 sealing rating, is perfect for harsh environments, promising reliability and performance.
Key Features
- Advanced Anomaly Detection: Detects defects and verifies assembly, enhancing quality control.
- Deep Learning-Based OCR: Captures text with no font training required, ensuring precision.
- Power-over-Ethernet (PoE) Support: Simplifies setup by powering the device via the network.
- User-Friendly Interface: Intuitive navigation reduces training time for users.
- Durable Design: IP67 rated for dust and water resistance, ideal for demanding environments.
Specifications
- Dimensions: 2.1 in. H x 2.5 in. W x 3.6 in. D (54.0 mm H x 64.0 mm W x 91.4 mm D)
- Weight: 14.1 oz. / 400.0 g
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
- Storage Temperature: -40°F to 158°F (-40°C to 70°C)
- Image Sensor: 2.3MP CMOS with global shutter
- Memory: 8 GB
- Power Options: PoE+, USB-C, or 24V DC power supply
- Protection Rating: IP67, chemical and oil resistant
- Warranty: 2 Years against defects
Zebra NS42 Specs
