63307 63307 63307 Zebra

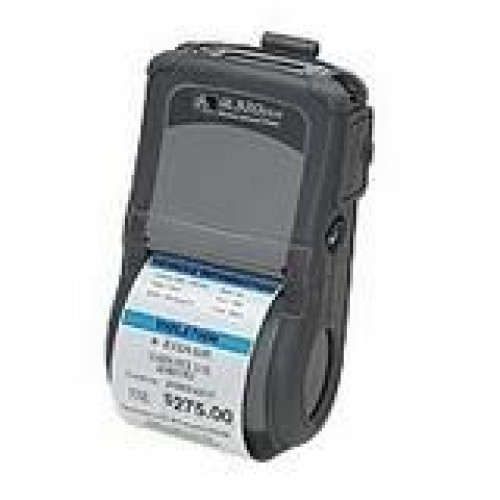

Zebra Portable Barcode Printer
Part #: Q3C-LUBC0000-00 | SKU: ZEB63307

The QL 320 direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring, and an optional LCD, it provides user-friendly options to keep your business moving. It is ideal for numerous applications, including price marking, shelf labeling, inter-store transfers, pallet labeling, production identification, and work-in-process tickets. The QL 320's QuickLink modules, in IrDA, Bluetooth, or 802.11b, offer the flexibility to adjust to a wide range of connectivity needs. As needs change, so can QuickLink modules. In addition, the QL 320 is cable-ready and offers cables to connect to a wider variety of terminals than any other mobile printer.

Zebra Portable Barcode Printer

Part Details: QL320, QL 320 Direct thermal Mobile Printer (3 inch Print width, 8MB RAM, 4MB Flash, CPCL EPL/ZPL Support, LCD, Bluetooth, Linered Platen, Label Present Sensor and Beltclip). Power supply (Part# CC16614-G4) not included. See accessories.
InStock

Additional Information

Manufacturer AIDC Zebra
Max Roll Outer Diameter 2.6
Model Name QL320
Print Resolution 203 dpi
Printer Type Mobile
Printing Technology Direct Thermal

Technical Information

  • Print Method:
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x USB
    • Wireless
  • Maximum Print Width: 2.9"
  • Maximum Label Width: 3.12"
  • Maximum Label Length: 16"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language:
    • CPCL
    • ZPL
    • EPL
  • Power Supply: External Not Included
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: Yes
  • Power Source: Battery

General Information

Physical Characteristics

  • Dimensions:
    • 8" (203.2mm) x 4.6" (116.84mm) x 3.1" (79mm)
    • 8" (203.2mm) x 4.6" (116.84mm) x x 3.1" (79mm)
  • Weight: 1.65 lb (0.75 kg)

Included Features

  • Included Features:
    • LCD Display
    • Linered Platen
    • Label Present Sensor
    • Cleaning Pen
    • Belt Clip

Environmental Conditions

  • Temperature:
    • 5°F (-15°C) to 122°F (50°C) Operating
    • 32°F (0°C) to 122°F (50°C) Operating - With LCD
    • -13°F (-25°C) to 158°F (70°C) Storage
    • -4°F (-20°C) to 158°F (70°C) Storage - With LCD
  • Humidity:
    • 10 to 80% Operating Non-condensing
    • 10 to 90% Storage Non-condensing

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE Class B
    • CSA
    • CB
    • NOM
    • C-Tick

Other

  • Package Contents:
    • QL 320 Plus Mobile Label Printer
    • Lithium Ion Battery

Media Characteristics

  • Maximum Label Roll Diameter: 2.6"
  • Label Core Size: 1.38"

Mobile Features

  • Network Connectivity: Bluetooth

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
