70675 70675 70675 Zebra

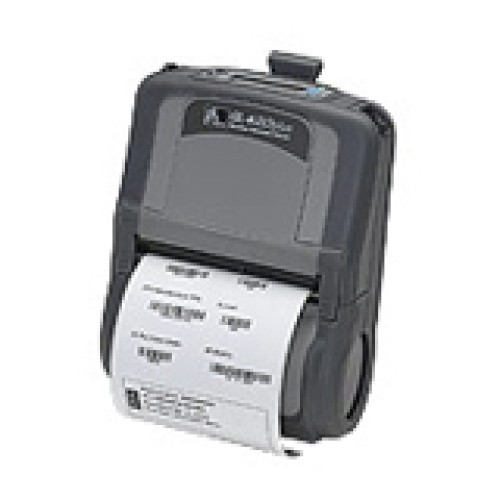

Zebra Portable Barcode Printer Zebra Portable Barcode Printer

Zebra Portable Barcode Printer
Part #: Q4D-LUBA0000-00 | SKU: ZEB70675

The QL 420 direct thermal mobile printer has been designed with the most advanced technology in rubber-infused over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring, and an optional LCD, it provides user-friendly options to keep your business moving. Ideal for many applications, including pick tickets, forklift-mounted printing, customer pick-up, shipment labeling, inventory updates, meter reading receipts, delivery verification invoices, and gas and utility inspection documentation. The QL 420's QuickLink modules, in IrDA, Bluetooth, or 802.11b, offer the flexibility to adjust to a wide range of connectivity needs. As needs change, so can QuickLink modules. In addition, the QL 420 is cable-ready and offers cables to connect to a wider variety of terminals than any other mobile printer.

Zebra Portable Barcode Printer

Part Details: Direct thermal linered platen, 203 dpi, 4 ips, 4" print width, Includes battery, belt clip and user's manual. Order battery charger & cables separately. See accessories.
InStock
Need a different version of the Zebra QL 420 Plus Portable Barcode Printer? View all 13 configurations

Additional Information

Manufacturer AIDC Zebra
Model Name QL 420 Plus
Print Resolution 203 dpi
Zebra QL 420 Plus Specs Zebra QL 420 Plus Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Peel Facility
    • Belt Clip
    • LCD Display
  • Barcode Symbology Supported:
    • Codabar
    • Code 128
    • Code 93
    • Code 39
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • MSI
    • Plessey
    • POSTNET
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • EAN-18
    • FIM
    • Maxi Code
    • PDF-417
    • Aztec Code
    • Data Matrix
    • QR Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: QL
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: QL 420 Plus
  • Product Name: QL 420 Plus Network Thermal Label Printer

Physical Characteristics

  • Height: 7.5"
  • Width: 6"
  • Depth: 3"
  • Form Factor: Portable

Interfaces/Ports

  • USB: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • QL 420 Plus Network Thermal Label Printer
    • Battery
    • QL 420 Plus Network Thermal Label Printer
    • Battery
  • Additional Information:
    • Present Mode
    • Media Handling : Direct Thermal/Linered Platen
    • Open access design and center locking media loading
    • Rubber infused plastic over mold design for tough conditions
    • Backward compatible with Encore and Cameo media and cables
    • Character Set : US/Canadian English/Latin 1 & 5 (Including Turkish)
    • Grouping "0": (US/Canada/Australia/New Zealand/ Mexico/Nicaragua)

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Linerless
    • Receipt
    • Fanfold
    • Black Bar
  • Media Thickness: 6.50 mil
  • Label Core Size: 1.38"
  • Maximum Roll Diameter: 2.63"

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • ZPL
    • EPL II
    • XML
    • EPL

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 1 Year
Extended Details
