248517 248517 248517 Zebra
Zebra Barcode Label Printer Zebra Barcode Label Printer Zebra Barcode Label Printer Zebra Barcode Label Printer Zebra Barcode Label Printer

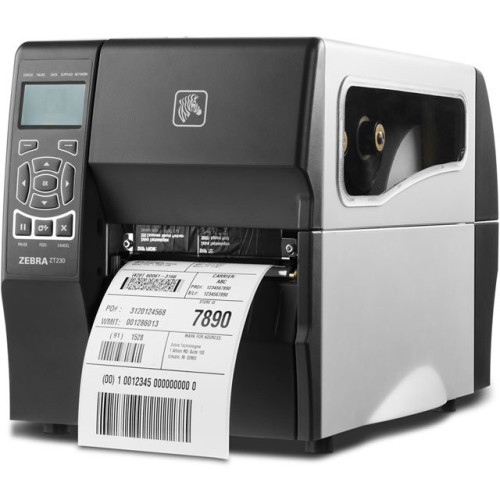

Zebra Barcode Label Printer
Part #: ZT23042-D31100FZ | SKU: ZEB248517

The ZT230 is the premium product within the Zebra printer line. Distinguishing features of the ZT230 include the mostly metal printer cover, an icon based LCD graphical user interface, and larger print ribbon capacity (450M). The ZT230 is the next generation replacement for the S4M, having the same list price while offering an enhanced feature set and improved mechanical and functional design.

Zebra Barcode Label Printer

Part Details: ZT230, Direct thermal printing, 203 dpi, 4" print width, Serial, Parallel, and USB Interfaces, Peeler with Liner Take-Up, and US Power cord. Cables sold separately.
InStock
Need a different version of the Zebra ZT230 Barcode Label Printer? View all 80 configurations

Additional Information

Manufacturer AIDC Zebra
Model Name ZT230
Print Resolution 203 dpi
Zebra ZT230 Specs Zebra ZT230 Specs (pdf) Zebra ZT230 Driver Zebra ZT230 Driver (download)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Clear Bi-fold Media Side Door
    • Element Energy Equalizer
    • Bi-color LED
    • Icon-graphics
    • Liner Take Up Spindle
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • RSS Composite
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • RSS-14
    • Aztec Code
    • Micro PDF-417
    • Codabar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: ZT200
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZT230
  • Product Name: ZT230 Industrial Printer

Physical Characteristics

  • Height: 10.9"
  • Width: 9.5"
  • Depth: 17"
  • Form Factor: Desktop
  • Weight (Approximate): 20 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • ENERGY STAR
  • Platform Supported: PC
  • Package Contents:
    • ZT230 Industrial Printer
    • Power Cord with US Plug
    • ZT230 Industrial Printer
    • Power Cord with US Plug
  • Certifications & Standards:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • UL
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • Unicode
    • KCC
    • BSMI
    • UkrSepr
    • PFC
    • cTUVus
    • S Mark

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Notch
    • Black Mark
    • Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 128 MB
  • Memory Technology: DRAM
  • Flash Memory: 128 MB

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL
Extended Details
