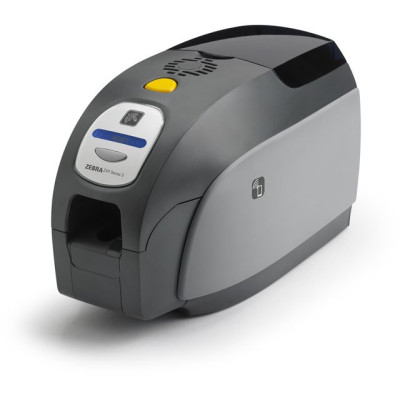

Zebra ZXP Series 3

Standard Features

• True Colours ix Series ZXP 3 highperformance ribbons with intelligent media technology
• High capacity, Eco-Friendly Load-N-Go dropin ribbon cartridges
• ZRaster host-based image processing

More Standard Features

• Auto calibration of ribbon
• USB connectivity
• Microsoft Certified Windows drivers
• Energy Star Certified
• Print Touch NFC tag for online Printer documentation access
• 100 card covered feeder (30 mil)
• 45 card capacity output hopper (30 mil)
• 16-character LCD operator control display
• 300 dpi (11.8 dots/mm) print resolution
• Two-year warranty on printer
• Two-year (unlimited passes) original printhead
• One-year hot swap (U.S. only)
• Secure lock slot

Printer Specifications

• Dye-sublimation thermal transfer direct to card
• Full color or monochrome printing
• Single- and dual-sided printing
• 700 cph monochrome single-sided
• 180 cph single-sided YMCKO
• 140 cph dual-sided YMCKOK
• Edge-to-edge printing on standard CR-80 media


Supplies Specifications

• Zebra ix Series intelligent technology automatically detects and authenticates ribbon.
• Integrated cleaning roller included on each ribbon.
• Media Starter Kit (single-sided)- 1 YMCKO ribbon, 200 30-mil PVC cards,
• Cleaning Kit: 4 print engine cleaning cards and 4 feeder cleaning cards, 1000 images

Operating Characteristics

• Temperature: 41F to 77F (5C to 30C)
• Humidity: 35% to 65% non-condensing
• Do not store in directt sunlight

• Auto-switching single-phase AC power
• Operating range: 90-132VAC and 190-264VAC RMS
• Frequency range : 47-63 Hz.
• Power requirement is 100W maximum continuous and 607W peak (for 450 microsec) output power.
• FCC Class A

Physical Characteristics

Optional Features

• *Built-in 10/100 Ethernet connectivity
• *CardSense single-card feed mode
• ZebraCare extended product warranty programs
• *Lockable enclosure with obscure output bin

Communication Interfaces

• USB V2.0 (cable included) - standard

• *Built-in 10/100 Ethernet - optional

Encoding Options and Specifications

• Magnetic stripe encoder - ISO 7811 (new and re-encoded, tracks 1,2, and 3, high and low coercivity, stripe down, 30 mil card only
• *Smart card contact station ISO 7816
• *Combined MIFAREISO 14443 (13.56 MHz) and ISO 7816 Contact Encoder Specifications - PC/SC and EMV level 1 certified (50 card capacity [30 mil] external output hopper)
• Encoding over USB and Ethernet

Card Compatibility

• Card Thickness: 10-40 mil

• Card Size: CR-80, ISO 7810 format, Type ID-1, 2.12" (54 mm) x 3.38"(86 mm)

• Card Material: PVC and PVC composite
• Smart Card Contact - ISO 7816-1,2,3,4
• Smart Card Contactless MIFARE ISO 14443A/B
• Spot Color or monochrome print only on < 20 mil card thickness
