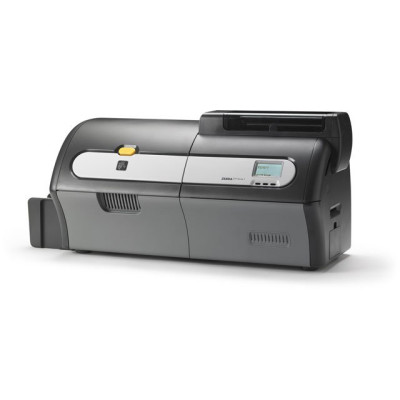

Zebra ZXP Series 7

More Standard Features

• 300 dpi/11.8 dots per mm print resolution
• USB 2.0 and Ethernet 10/100 connectivity
• Microsoft® Windows-certified drivers
• 10-50 mil auto-adjusting card feeder
• 200-card capacity feeder (30 mil)
• 15-card reject hopper (30 mil)
• 100-card output hopper (30 mil)
• Manual card feed capability
• 21-character x 6-line LCD operator display with configurable soft keys
• Kensington® physical lock slot
• Two-year unlimited warranty on printer and printhead

Optional Features

• Single and dual-sided laminator
• Lockable enclosures and card feeder
• Extended product warranty programs

Encoding Options

• High and low coercivity magnetic stripe encoder
• Combined MIFARE® ISO 14443 A & B contactless and ISO 7816 Contact Encoder
• ISO 7816 Smart Card Contact Station for third party external contact encoders

Printing and laminating specifications

• Color dye sublimation or monochrome thermal transfer printing
• Single- and dual-sided printing
• Edge-to-edge printing on standard CR-80 media
• Simultaneous printing, encoding, and laminating capability
• One-pass single- and dual-sided wasteless lamination
• 1375 cards/hour monochrome single-sided or 555 cards/hour dual-sided printing
• 300 cards/hour full-color YMCKO single-sided printing
• 225 cards/hour full-color YMCKOK dual-sided printing
• 270 cards/hour full-color YMCK single-sided printing with lamination
• 200 cards/hour full-color YMCKK dual-sided printing with lamination

Supplies Specifications

True Colours® ix Series™ ribbons:

• YMCKO: 250 or 750 images/roll
• YMCKOK: 250 or 750 images/roll
• YMCUvK: 750 images/roll
• Black monochrome: 2500 or 5000 images/roll
• White monochrome: 2500 images/roll

True Secure™ i series laminates:

• Linerless waste-free 1.0 mil top and bottom laminate: 750 images/roll
• Laminate types: clear, magnetic stripe, magnetic stripe with signature panel, smart card, and holographic wallpaper designs
• Custom laminates with registered or wallpaper holographic images available
• Card cleaning rollers are included with each ribbon carton
• Specially designed cleaning supplies simplify preventative maintenance

NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.

Card specifications/compatibility

• Card Thickness: 10 – 50 mil (0.25 – 1.27mm)
• Card Thickness for lamination: 30 mil (0.76 mm) only
• Card Size: CR-80, ISO 7810 format, Type ID-1
• Card Material: PVC and composite, PET, PET-G, PET-F, and Teslin® composite
• Technology Cards: contact and contactless smart cards
• Specialty cards: adhesive backed, transparent (IR-blocked), signature panel, and select key-tag types

Operating Characteristics

• Operating Temperature: 59º F/15ºC to 95º F/35ºC
• Storage Temperature: 23º F/-5ºC to 158º F/70ºC
• Operating Humidity: 20% to 80% inclusive, non-condensing
• Storage Humidity: 10% to 90% inclusive, non-condensing
• Media should not be above 140º F/60º C for longer than 200 hours, and above 90% relative humidity at 104º F/40º C for longer than 100 hours

Electrical Specifications

• Auto-switching single-phase AC power
• 90V~264V AC and 47–63Hz (50-60Hz nominal)
• FCC Class A
• Energy Star compliant

Physical Characteristics

• Height: 12.0" (306mm)
• Width (printer only): 27.5" (699mm)
• Width (printer with laminator): 38.0" (964mm)
• Depth: 10.9" (277mm)
• Weight (printer only): 26.9 lbs (12.2 kg)
• Weight (printer with laminator): 39.5 lbs (17.9 kg)

Software

• ZMotif SDK support and sample code
• Microsoft Windows-certified printer drivers with Toolbox utility features: Windows 7, Windows Vista®, Windows Server® 2008
•  (all 32- and 64-bit-compatible), and Windows XP, Server 2003 (both 32-bit-compatible)
• CardStudio card design and issuance software with Direct-to-Print (D2P) driver technology support
• Zebra Virtual PrintWare software support
