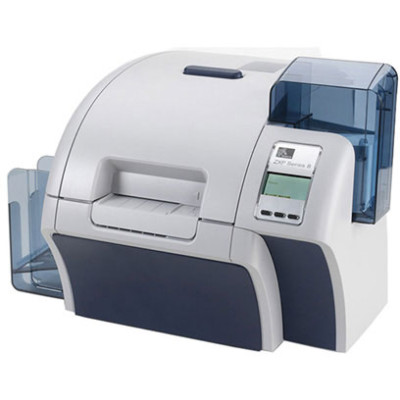

Zebra ZXP Series 8 ID Card Printer

With the Zebra ZXP Series 8 Secure Issuance printer, your financial, educational or retail institution can issue financial cards quickly, securely and without sacrificing print quality. You'll boost customer satisfaction by instantly printing and encoding personalized cards on-site. Meeting industry standards for the financial instant issuance market, and custom-coded for leading instant issuance applications, the ZXP Series 8 Secure Issuance printer ensures the highest levels of security and reliability. The printer includes physical and logical security locks to protect the input hopper, reject bin, and media inside the printer from unauthorized access, and can be physically secured to the work station via a Kensington lock. AES-128 encryption protects all sensitive cardholder data during network transmission, and the cards are obstructed from view while in the input and output hoppers. Instant issuance eliminates the costs and delays of mailing cards from centralized printing facilities, and prevents cards from being lost or stolen in the mail. Both the issuing institution and the cardholder gain peace of mind, while card activation rates and cardholder spending rise.

See all options

Specs & Info
All Options

Zebra ZXP Series 8 Specs (pdf)

Zebra ZXP Series 8 Driver (download)

BENEFITS

Mechanical and logical printer locks
Obscure card input and output hoppers
AES 128 encription of encoding data

More Standard Features

304 dpi (12 dots/mm) print resolution
Two years limited on printer, lifetime on printhead

Printer Specifications

Single or Dual-sided Printing
Color Capability: Full Color Monochrome
Print Method: Retransfer
Card Feeder: Integrated Card Feeder Single Card Feeder
Card Feeder/Hopper Capacity

150 card capacity card feeder (30 mil)
100 card output hopper (30 mil)

Memory: 64 MB memory (standard)
Print speed

190 cards/hr Single-sided print (YMC)
180 cards/hr Dual-sided print (YMCK)

Media Characteristics

Ribbons

Zebra True Colours i Series ribbons with intelligent RFID technology to authenticate and automate ribbons
YMCK ribbon – 625 images/roll
YMCKK ribbon – 500 images/roll
YMCUvK – 500 images/roll
YMCKI – 500 images/roll
YMCKKI – 415 images/roll
YMC – 800 images/roll
Monochrome Black – 2500 images/roll

Transfer Film Zebra True Colours i Series transfer film: 1250 images/roll single-side, 625 images/roll dual-sided

Operating Characteristics

Operating temperature: 59° F (15° C) to 77° F (25° C)
Storage temperatures: 23° F (-5° C) to 131° F (55° C)
Operating humidity: 20% to 80% non-condensing
Storage humidity: 10% to 90% non-condensing
Electrical: 100-240V AC and 50-80 Hz
Auto-sensing single-phase AC power

Programming Languages

Core programming languages XML

barcodes/Symbologies

Linear: Other Symbologies via Windows Driver
Fonts and Graphics: True type or other type fonts via Windows driver

Card Detail

Card Types

Technology cards: magnetic stripe, contact smart, contactless smart
PVC, Composite PVC, ABS, PET, PET-G, Teslin composite, Polycarbonate

Card Size: CR-80 size, ISO 7810 format, Type 1D-1
Card Thickness: 30 mil – 40 mil

Extended Details

Refine Your Options

Zebra ID Card Printer
Part #: Z82-0M0C0I52US00 | SKU: ZEB146039

ZXP Series 8 Secure Issuance, SECURE ISSUANCE ZXP8 PRINTER
